SONAR SP200
1 Item Items
Last item in stock!
Availability date:
This autonomous depthmeter/fishfinder requires only a 12V supply to operate. The black box serves as a wifi access point for a smartphone or tablet. Multiple client connections are possible
Access to the unit is done through the free Sonarphone application available for iOS (iPhone/iPad) or Android.
The Sonarphone application enables:
-manual or automatic settings of gain, depth range, units (m, Ft, ° C etc)
-a shallow alarm, with sound alert
-compensation of the effects of surface

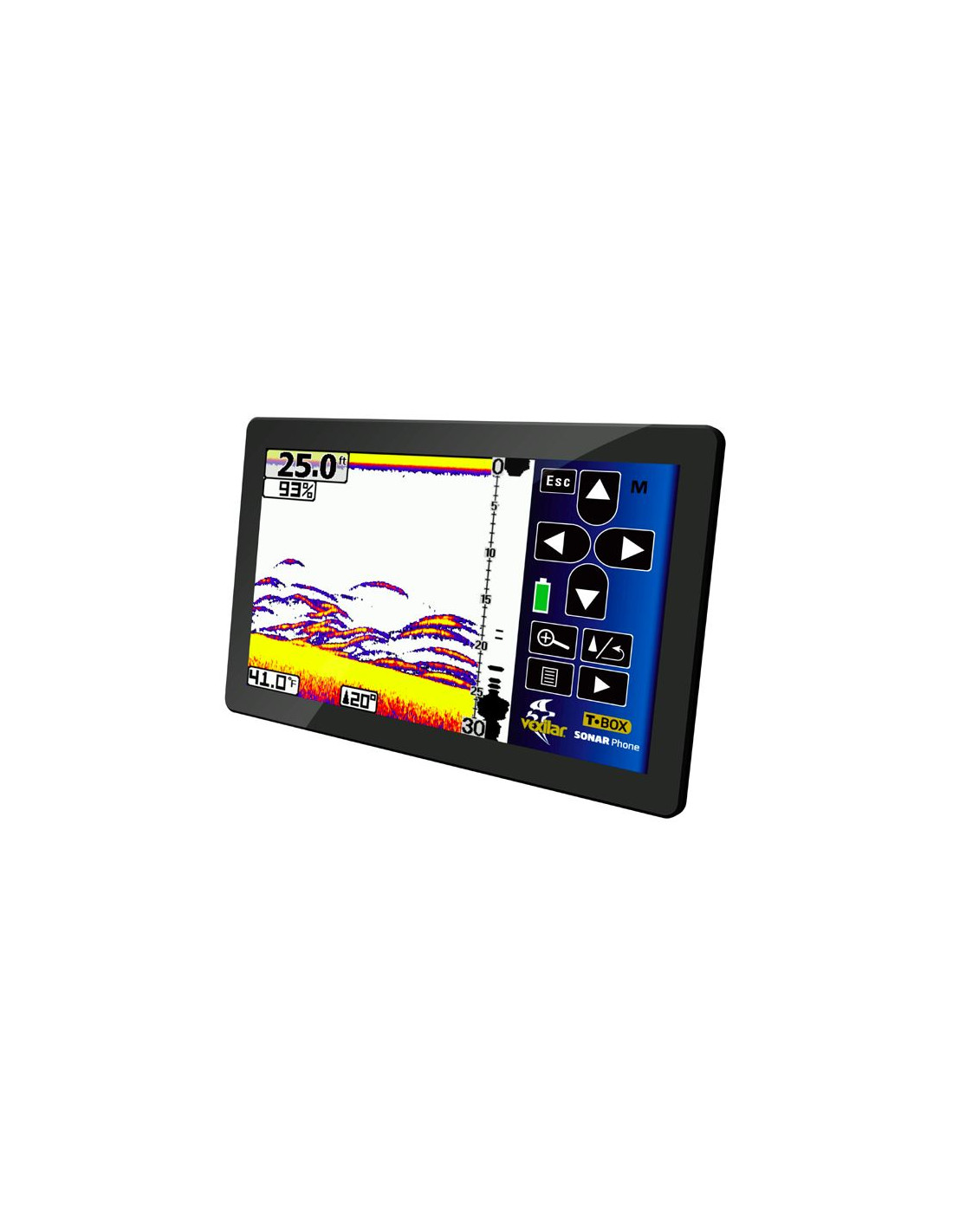

-different renderings of sea bottom and the presence of fish, with a zoom mode.
-display of water temperature
Even more interesting, Sonarphone is compatible with the popular Navionics Boating app, and allows:
- a split screen view on smartphone or tablet, with both the navigation chart and sea bottom
- to automatically record and download depth measurements to feed the Navionics Sonarcharts database, sharing data with all users!

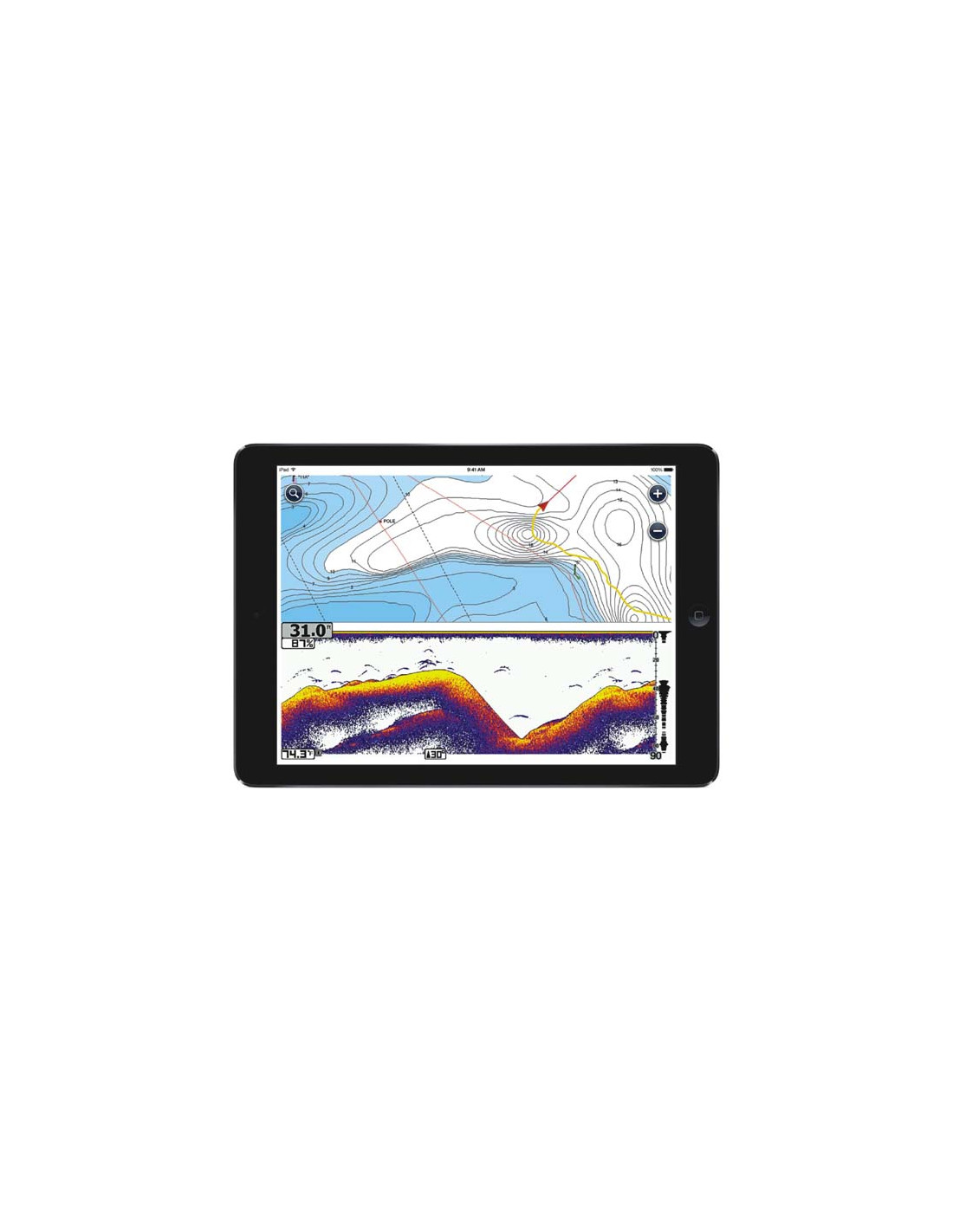

Navionics boating in split screen chart + sea bottom

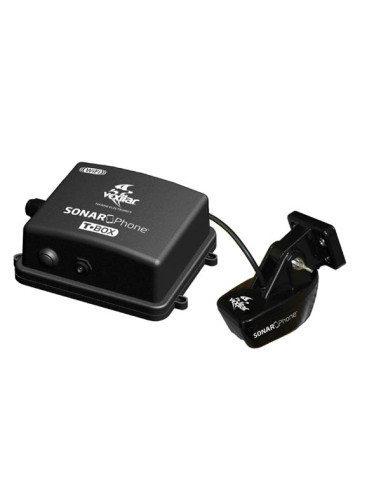

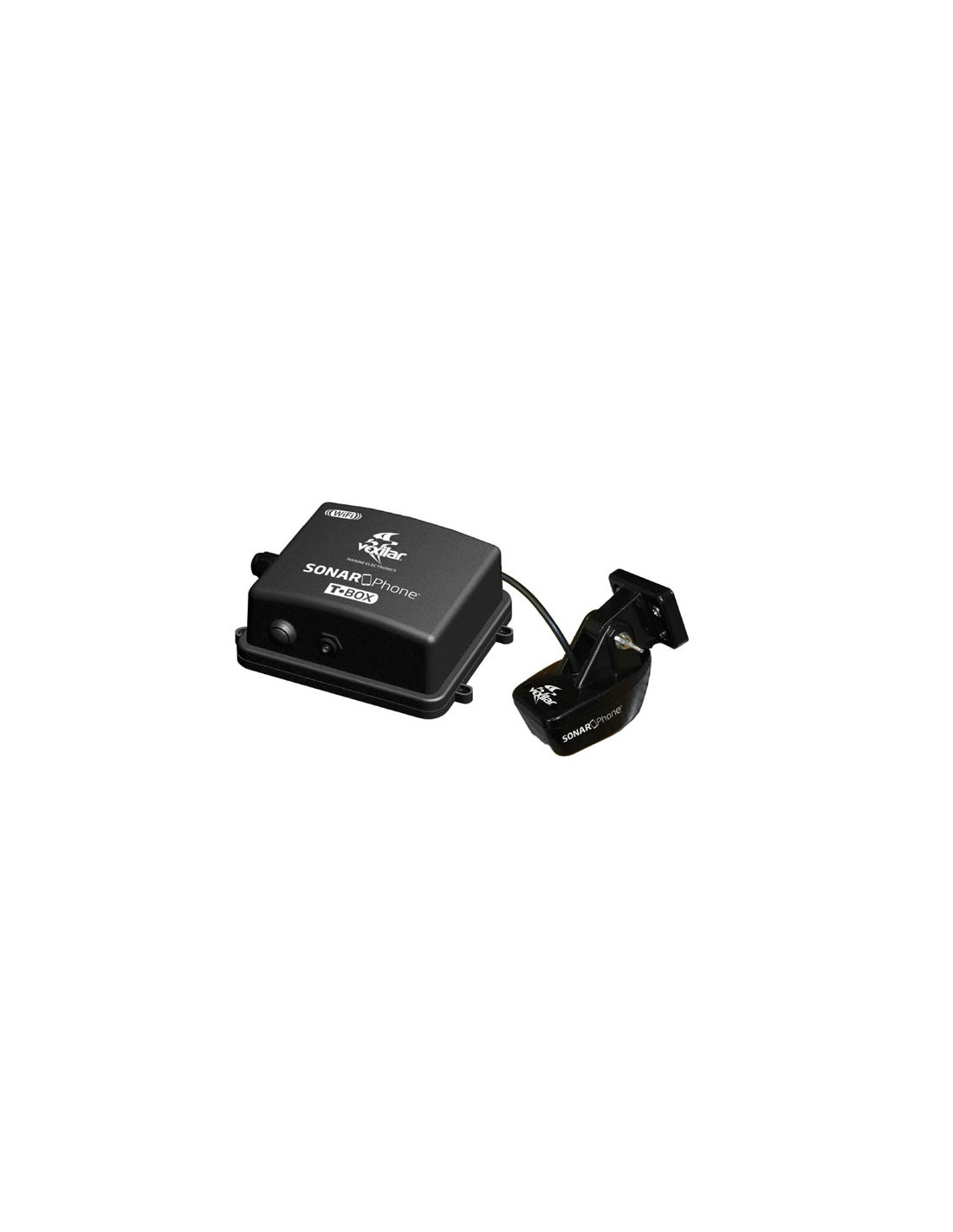

The probe is mounted on the transom and is connected to the central unit with a 7.5m cable. It operates at two frequencies:
- a wide beam (40 °) at 83 kHz
- a narrow beam (20 °) for greater depths at 200 kHz
Its streamlined shape reduces drag and turbulences.
As a special offer, 2 additional items are included in the package:
- a cigar lighter phone charger with dual USB outputs
- a neoprene armband case for smartphones
- central unit T-Box dimensions: 10.5 x 8.5 x 4.5 cm
- probe: 6 x 4.5 x 2.5 cm
- probe to central unit cable length: 7.5 m
- depth range: 0.6-72 m
- dual beam 83 kHz and 200 kHz
- 12V power supply
- On / Off button on CPU
- T-Box wifi unit + probe + data cable
- 12V power cable
- Temporary offer: cigar lighter charger + armband for smartphone.
Merci pour votre commentaire. Pour l'interaction entre Wifi et 4G sur Android, ce n'est pas lié au Sonarphone. A priori, il faut régler les "options de développement" de votre smartphone (voir les discussions sur le sujet sur les forums).
Le montage de la sonde est expliqué dans notre guide de démarrage. Celle-ci doit être soit immergée à fleur d'eau sur le tableau arrière, soit collée en intra-coque. Pour la pochette, cela dépend effectivement des tailles de smartphones qui ont tendance à augmenter. Message passé au fabricant :)
