WiFi hotspot kit (mobile antenna)

€0.00
Tax included
  • A kit that doesn't require installation and can be moved around, enabling you to considerably improve the range of your wifi connection from a boat, a vehicle or on vacation.
  • Once the remote wifi network ("hotspot") has been selected, the Internet connection is repatriated to a small local wifi router, enabling everyone to connect as if to a box at home.
  • The kit is fully configurable and can be used with a smartphone, tablet or PC/MAC.

Last items in stock
  • Shipments at 12 PM from Monday to Friday.
  • Possible returns within 30 days (see conditions)
  • Secure payment by card or bank transfer.

Overview

This complete connection kit enables you to pick up the signal from public WiFi hotspots** more efficiently from your boat. It is comparable to the fixed antenna kit, butavoids the need to permanently install an outdoorantenna with its own cable routing. It can easily be moved from one boat to another if required.

  • It provides much better Internet access (for iPad, PC, smartphone or other tablet) at anchor or in port... provided, of course, that there's a public access point not too far away.
  • It lets you share the connection with the whole crew from a single access point.
  • Once the devices are connected to the on-board network, they will have access to the Internet as soon as it becomes available, either via a hotspot or a 3/4G key (not supplied).

Its small antenna can be held in the hand or attached with suction cups to the outside (or even inside the cabin) while the Internet is in use.

Despite its small size, this antenna provides equivalent gain to that of the fixed kit. Note, however, that this is a directional antenna, and must be pointed in the direction of the hotspot. This characteristic makes it less suitable for use at anchor than the kit with omnidirectional fixed antenna: it is best used in a harbor when the boat is not moving.

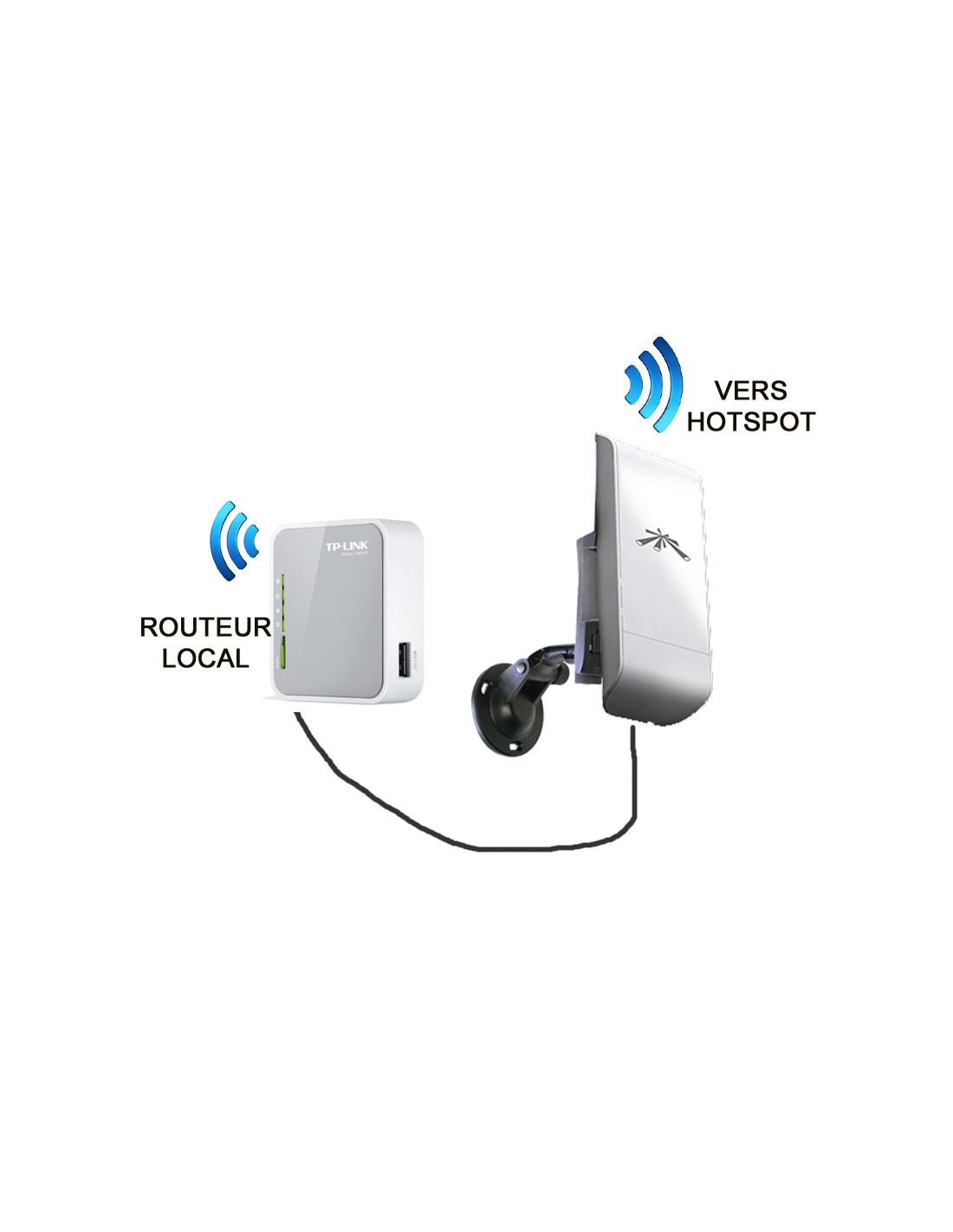

The Ethernet cable connection between the antenna and its access point eliminates the need for a coaxial cable and therefore signal loss: system performance is identical whatever the length of Ethernet cable used.

Kit composition

The complete kit consists of :

  • a WiFi router for installation in the boat
  • an external antenna with integrated amplifier/access point
  • a suction cup mounting bracket
  • and various interconnection and power cables.

It's easy to install without any prior knowledge, thanks to the supplied set-up instructions. Initial settings are made wirelessly from a computer or tablet.

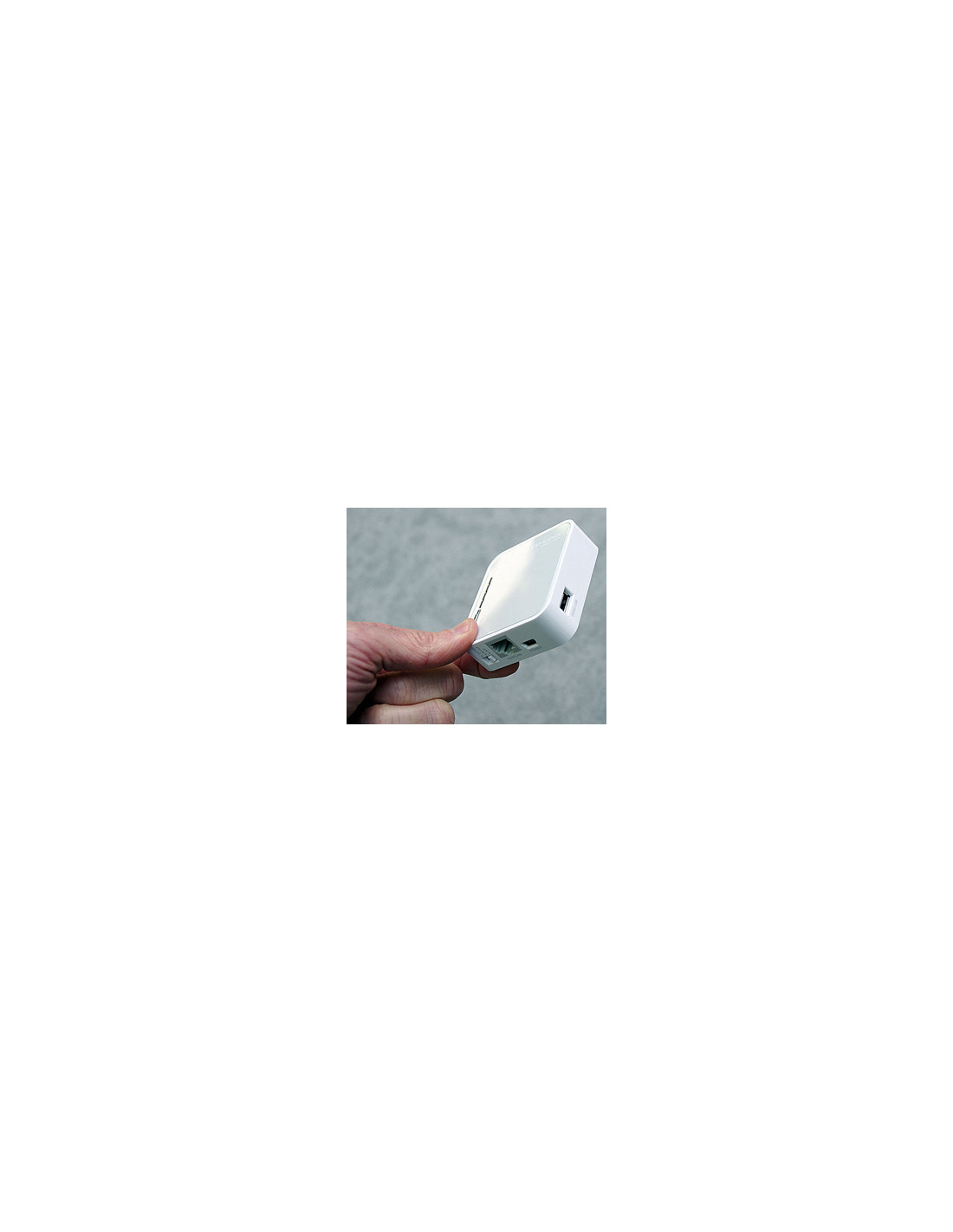

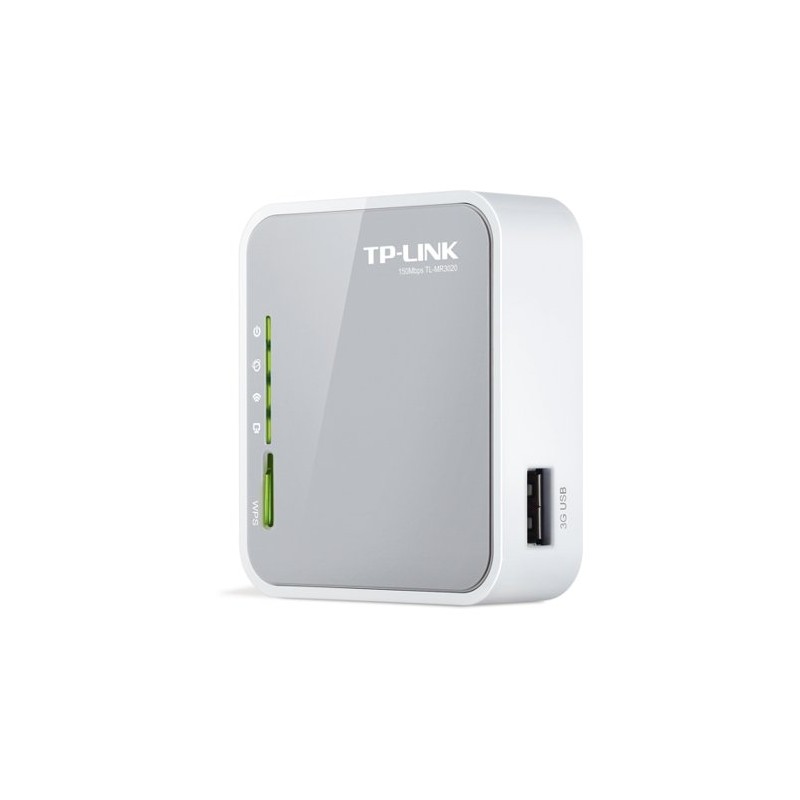

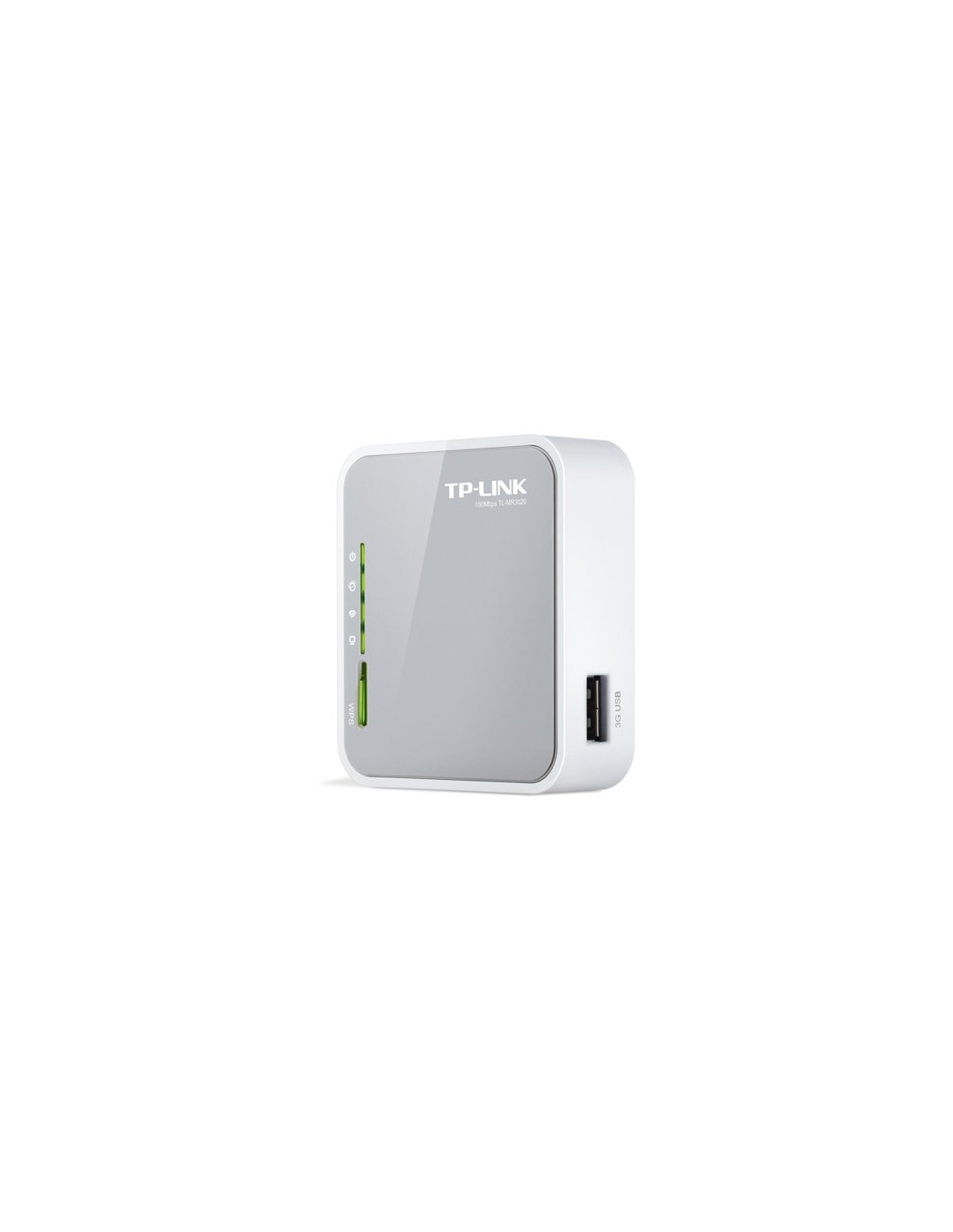

TP-LINK MR3020 ROUTER

  • Tiny yet high-performance router.
  • Fully configurable from any browser.
  • WiFi 802.11 b,g,n with WEP, WPA, WPA2 security
  • Possibility of connecting a 3/4G dongle (not supplied) to share a 3/4G connection in addition to hotspot WiFi
  • Dimensions 74 x 67 x 22 mm.
  • Please note that no Ethernet connection is possible, as the socket is occupied by the antenna cable.

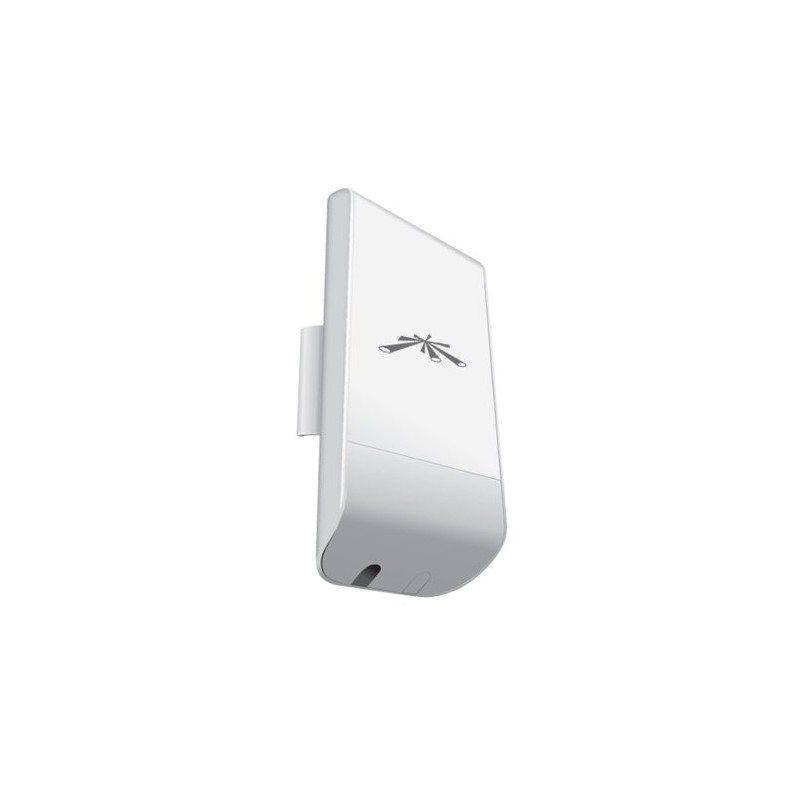

UBIQUITI LOCO M2 ANTENNA / INTEGRATED ACCESS POINT

  • 2.4GHz directional antenna
  • Opening angle: 60
  • 8.5 dBi antenna gain + 23dBi amplification
  • Integrated access point powered by Ethernet cable (PoE). Reception level visible via LEDs
  • Dimensions: 163 x 80 x 31 mm

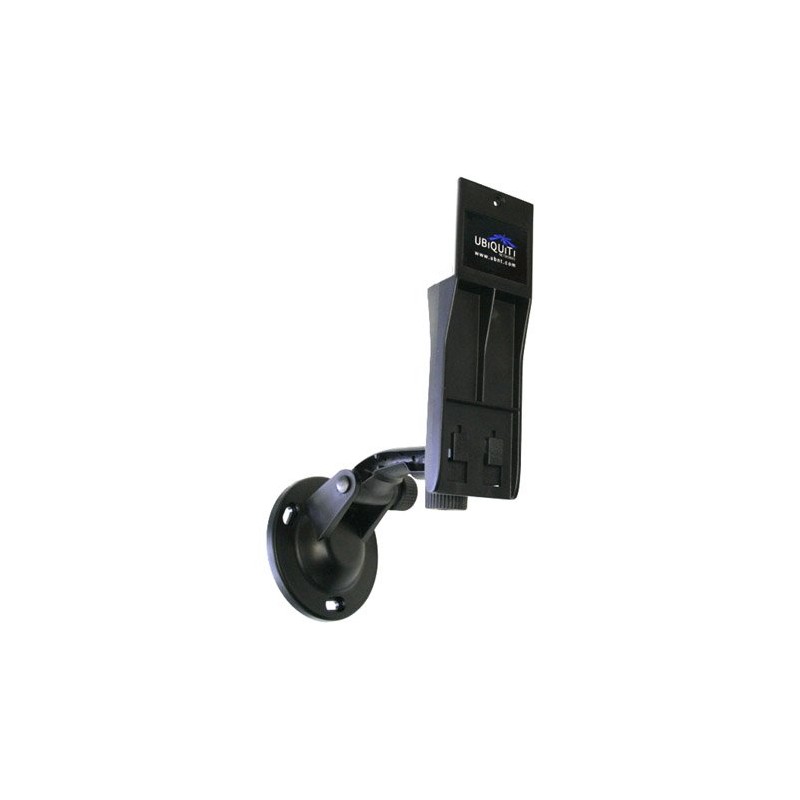

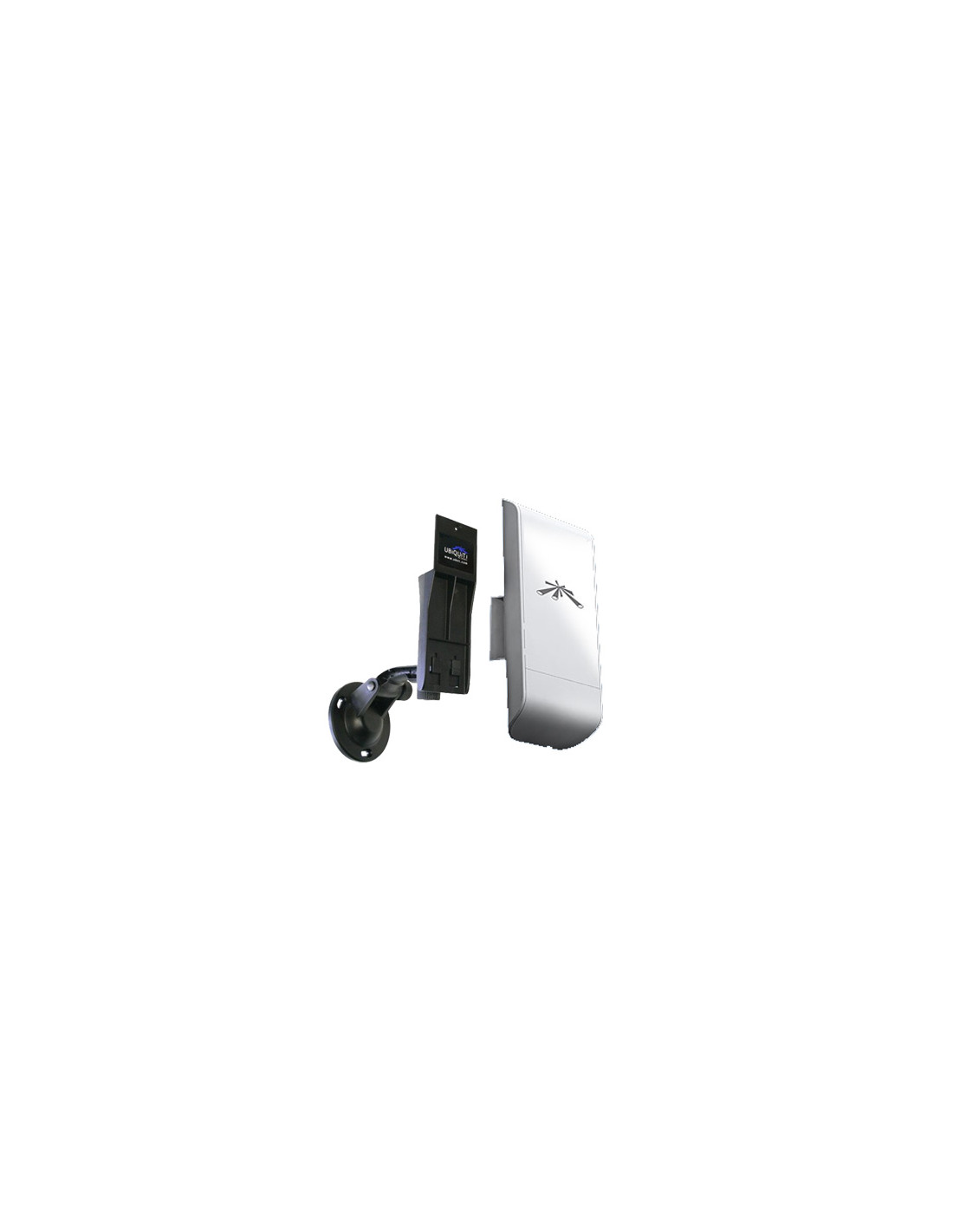

ANTENNA SUPPORT

  • External mounting by screw or suction cup
  • swivel arm

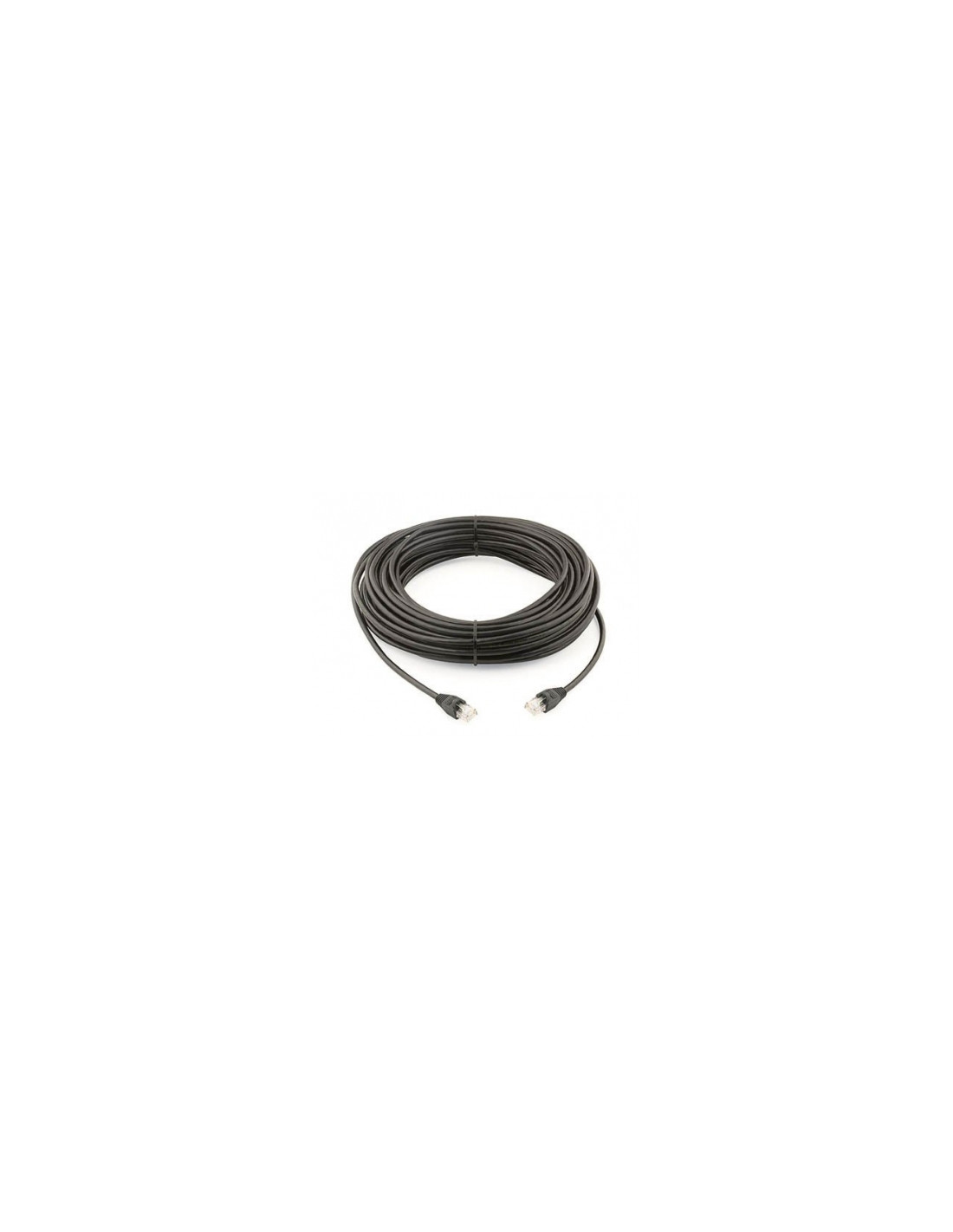

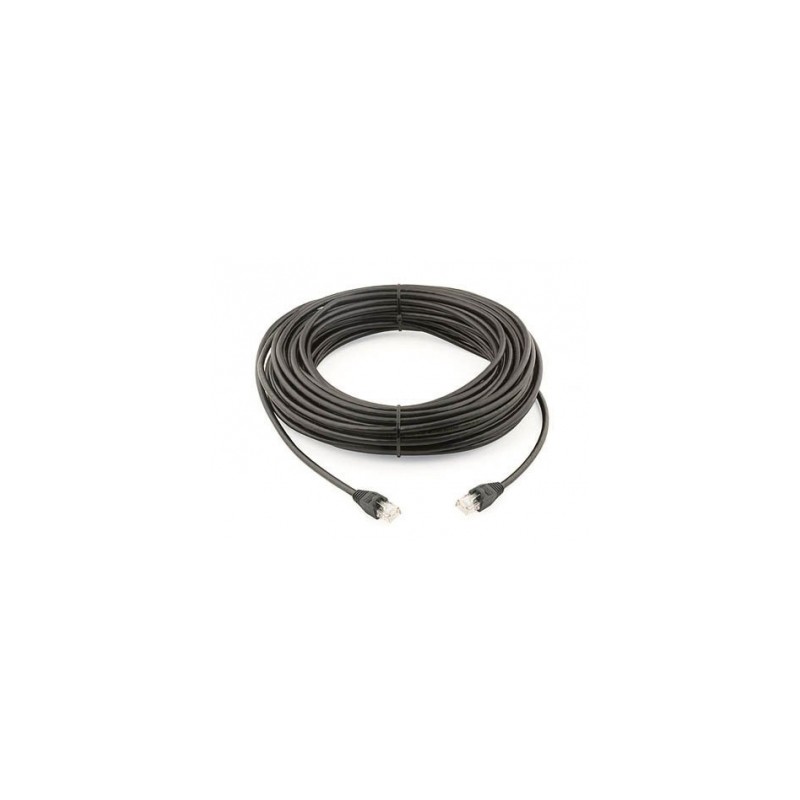

CAT5 ETHERNET CABLE

  • Weatherproof and UV-resistant.
  • No signal loss (unlike coaxial cable)
  • Choice of lengths 5, 10 or 20m (select at top)

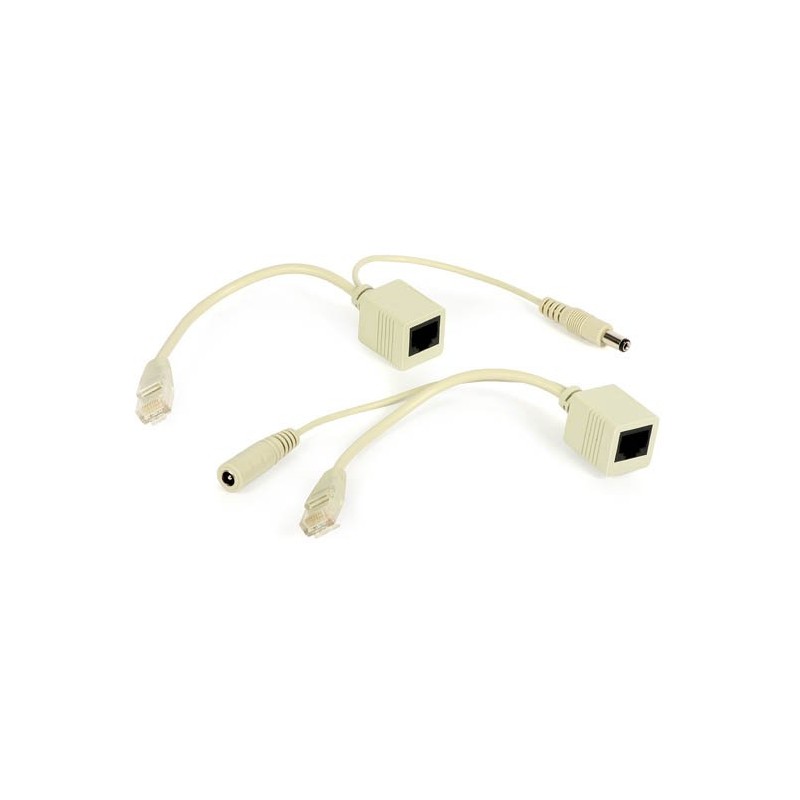

CABLE POE

  • PoE (Power-over-Ethernet) adapter cable
  • for powering the antenna unit via its Ethernet input

Power supply

The unit can be powered by one of the two power supplies supplied:

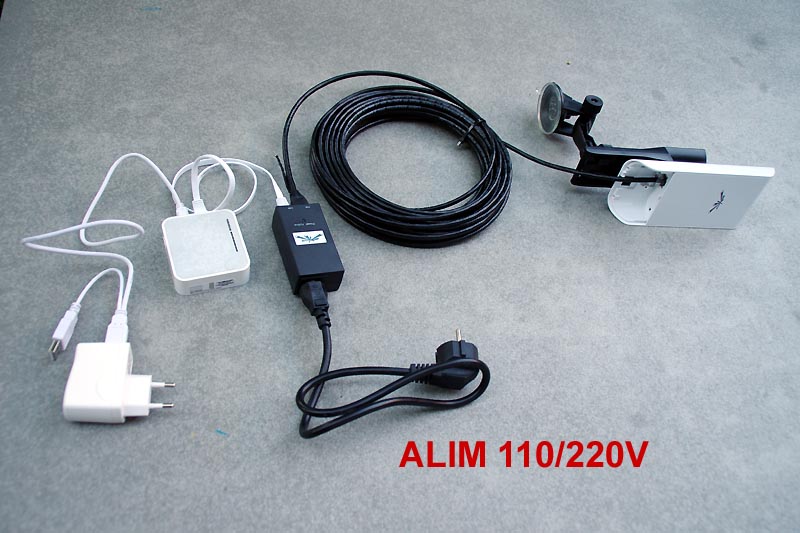

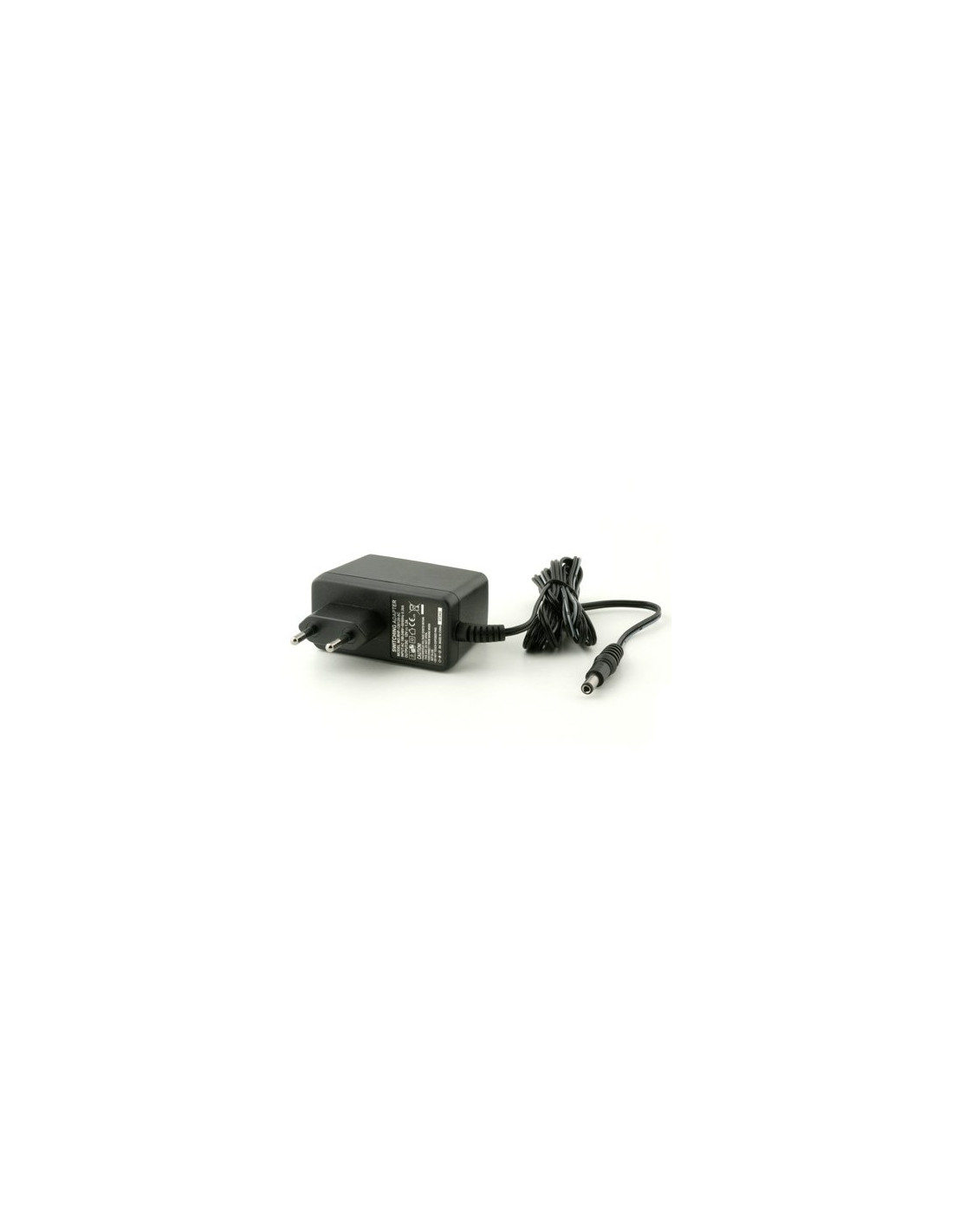

    • mains with 1 x 100/240V - 12V 1.5A power supply for the antenna + 100/220V - 5V power supply for the router (both supplied)

    • on 12V/24V mains with a 12V cigarette-lighter cord (supplied) for the antenna + a USB Type-A smartphone charger (not supplied) for the router.

    * With a compatible 3/4G USB key (not supplied)

    ** Also works on private accesses with known identifiers.
