WiFi hotspot kit (fixed antenna)

€290.60
Tax included
  • Kit for considerably improving the range of wifi connections from a boat, a vehicle or even at home.
  • Once the remote wifi network ("hotspot") has been selected, the Internet connection is repatriated to a small local wifi router, enabling everyone to connect as if to a box at home.
  • The kit is fully configurable and can be used with a smartphone, tablet or PC/MAC.
Last items in stock
Cable length 5m
  • Shipments at 12 PM from Monday to Friday.
  • Possible returns within 30 days (see conditions)
  • Secure payment by card or bank transfer.

Overview

This complete connection kit enables you to pick up the signal from public WiFi hotspots** more efficiently from your boat:

  • It provides much better Internet access (for iPad, PC, smartphone, or other tablet) at anchor or in port... provided, of course, that there's a public access point not too far away.
  • It lets you share the connection with the whole crew from a single access point.
  • Once the devices are connected to the on-board network, they will have access to the Internet as soon as it becomes available, either via a hotspot or a 3/4G key (not supplied).

Its omnidirectional antenna is particularly effective at anchor, where the rotation of the boat on its anchor usually causes signal loss with conventional antennas.

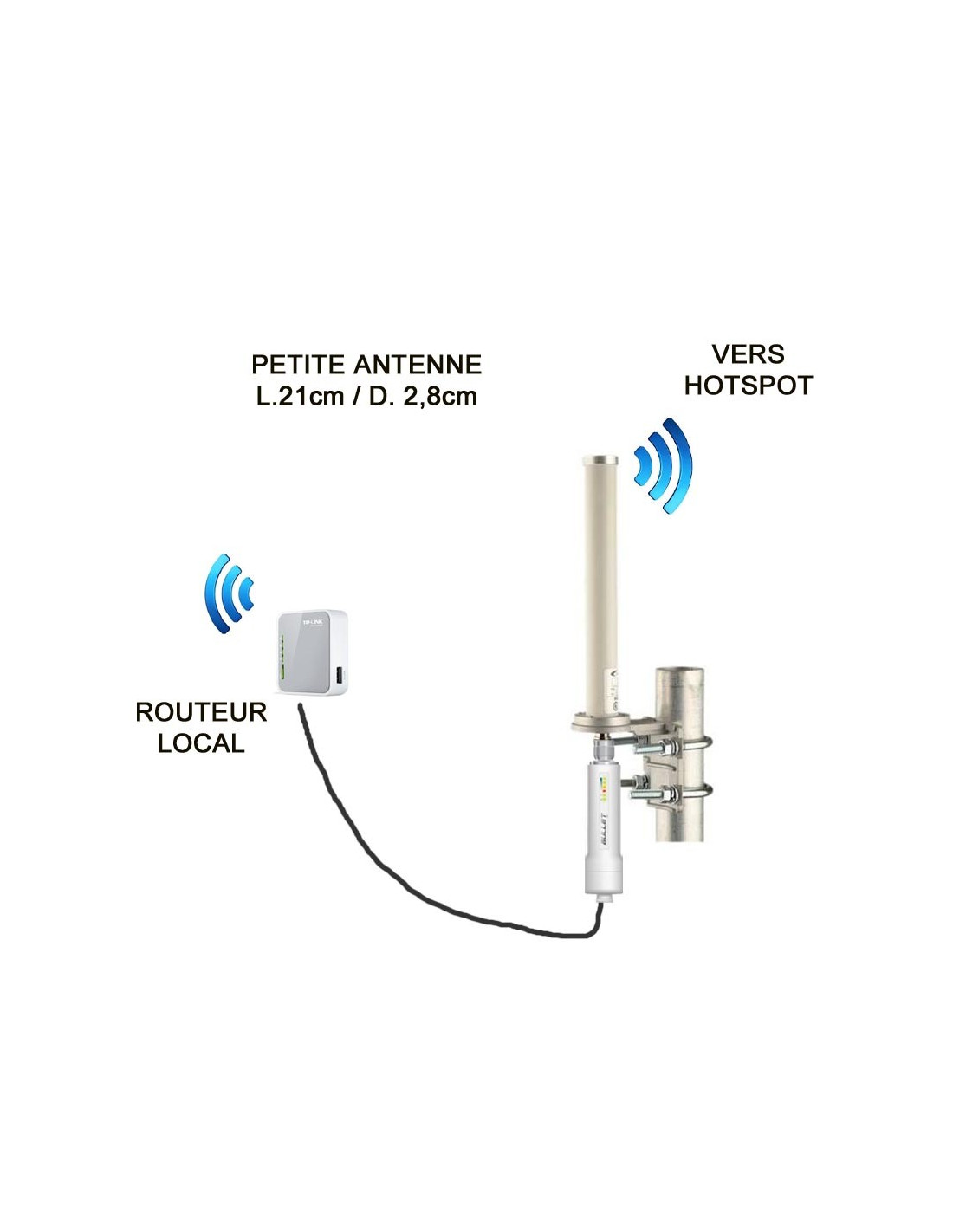

The Ethernet cable connection between the antenna and its access point eliminates the need for coaxial cable and signal loss: system performance is identical whatever the length of Ethernet cable used.

Kit composition

The kit consists of :

  • a WiFi router for installation in the boat
  • an external antenna
  • an outdoor access point amplifier
  • a balcony mounting bracket
  • and various interconnection and power cables.

It's easy to install without any prior knowledge, thanks to the supplied set-up instructions. Initial setup is performed wirelessly from a computer or tablet.

For physical installation, you'll need to provide grommets for the external cable (not supplied).

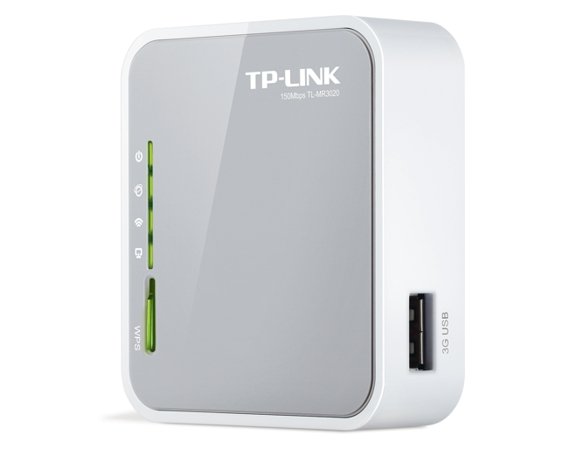

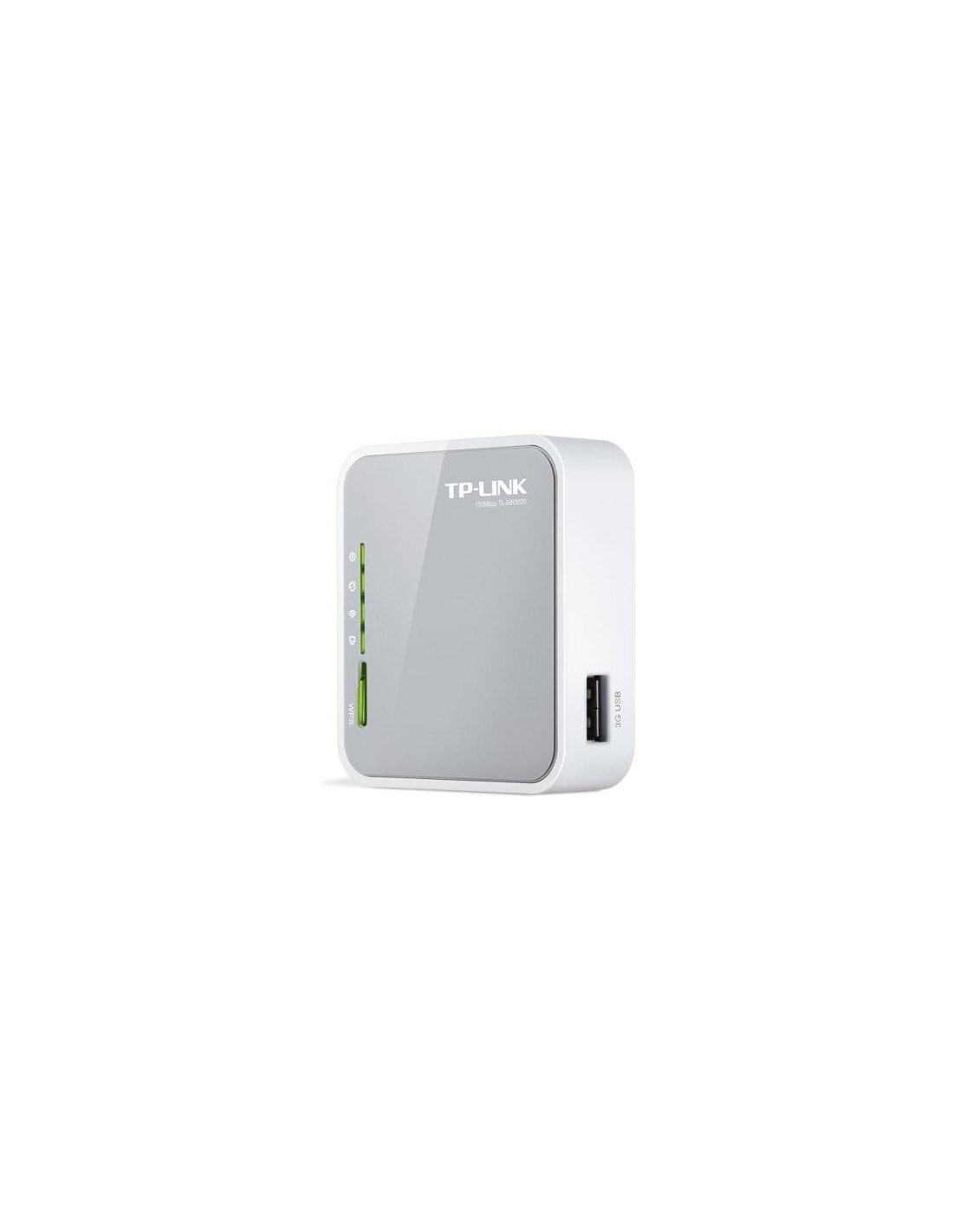

TP-LINK MR3020 ROUTER

  • Tiny yet high-performance router.
  • Fully configurable from any browser.
  • WiFi 802.11 b,g,n with WEP, WPA, WPA2 security
  • Possibility of connecting a 3/4G dongle (not supplied) to share a 3/4G connection in addition to hotspot WiFi
  • Dimensions 74 x 67 x 22 mm.
  • Please note that no Ethernet connection is possible, as the socket is occupied by the antenna cable.

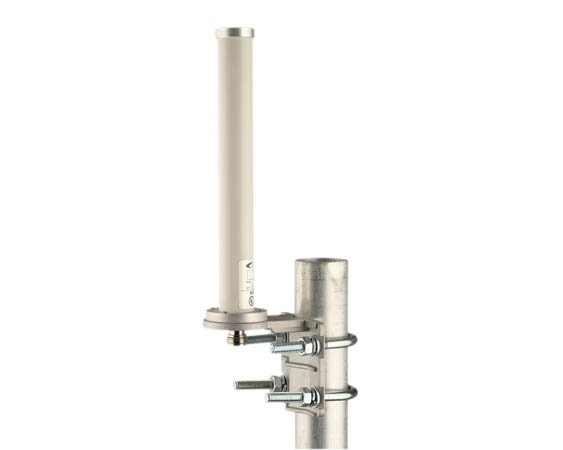

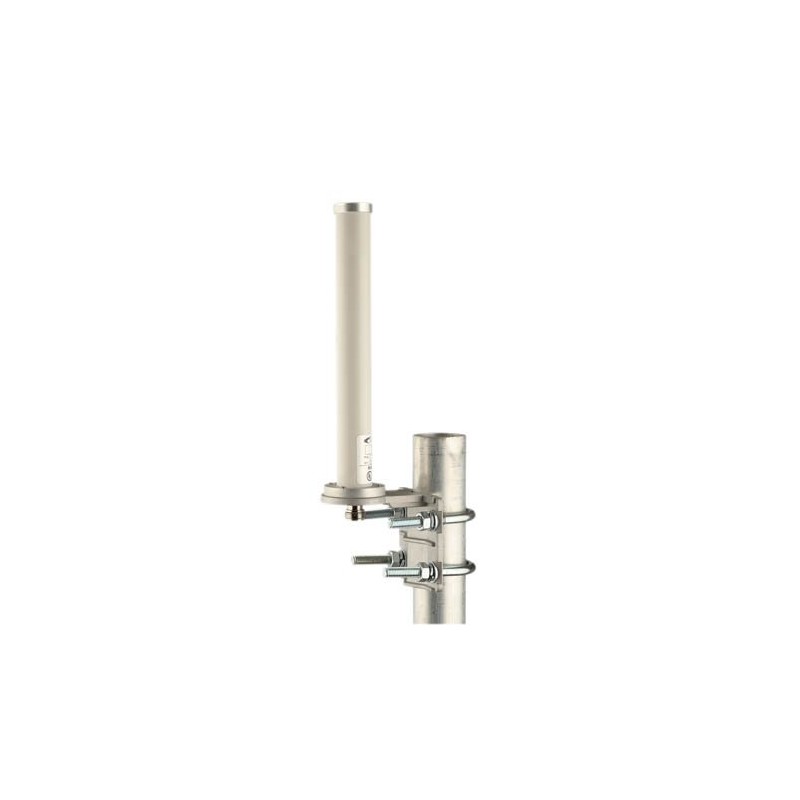

ANTENNA

  • 2.4GHz Mars Antenna high-end omnidirectional fiberglass antenna
  • 5 dBi gain
  • Dimensions : L 21cm - diam 2.8cm
  • Total gain amplifier + antenna: 33dBi

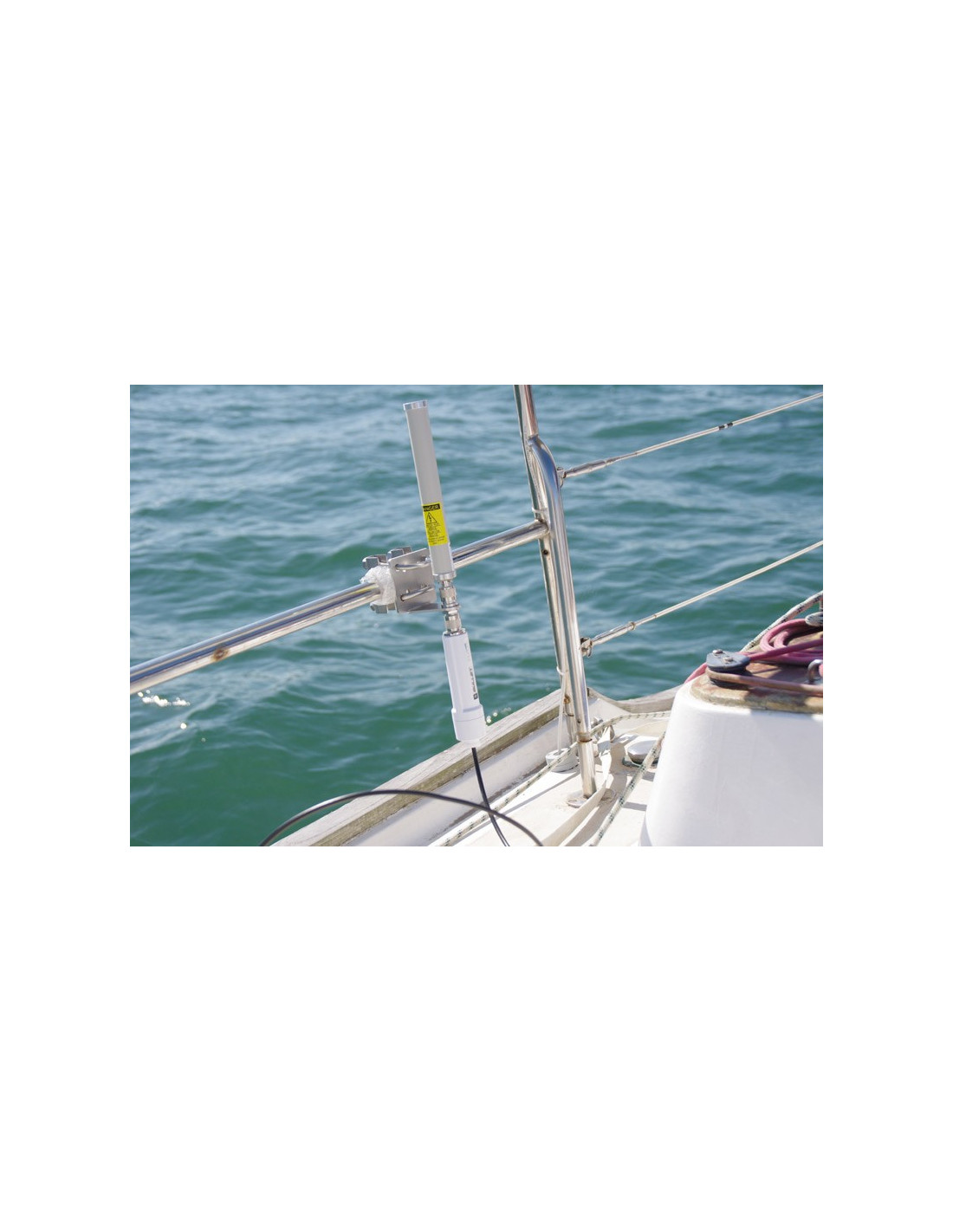

  • Stainless steel balcony mounting system (on 35 to 50 mm diameter tube).

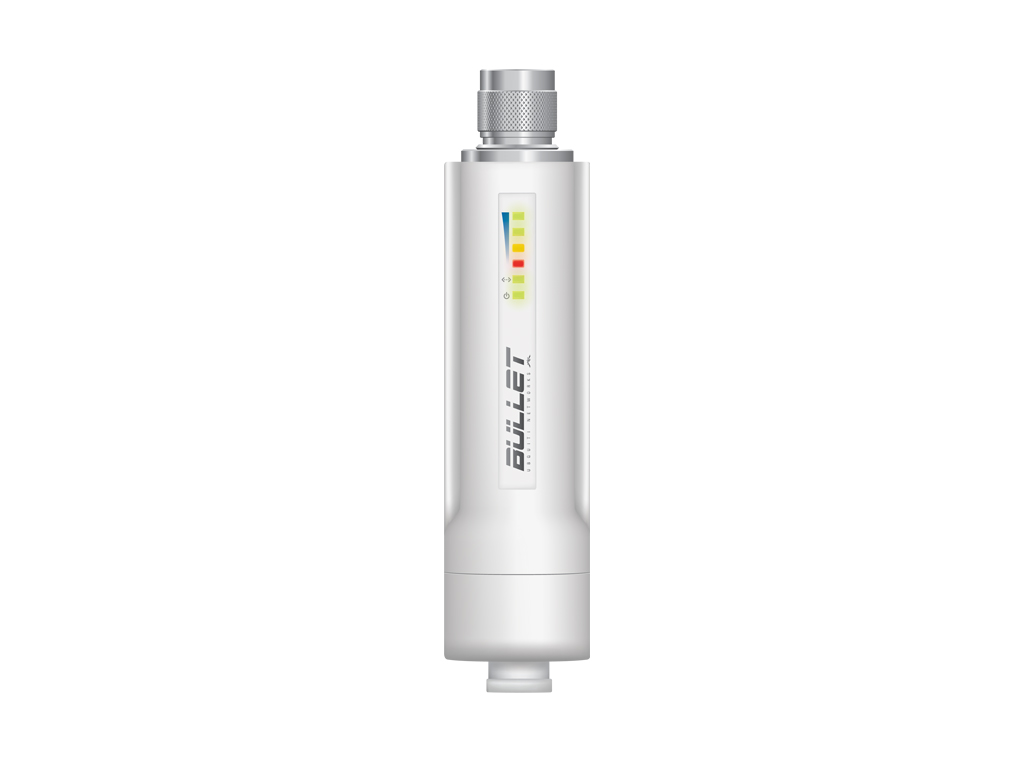

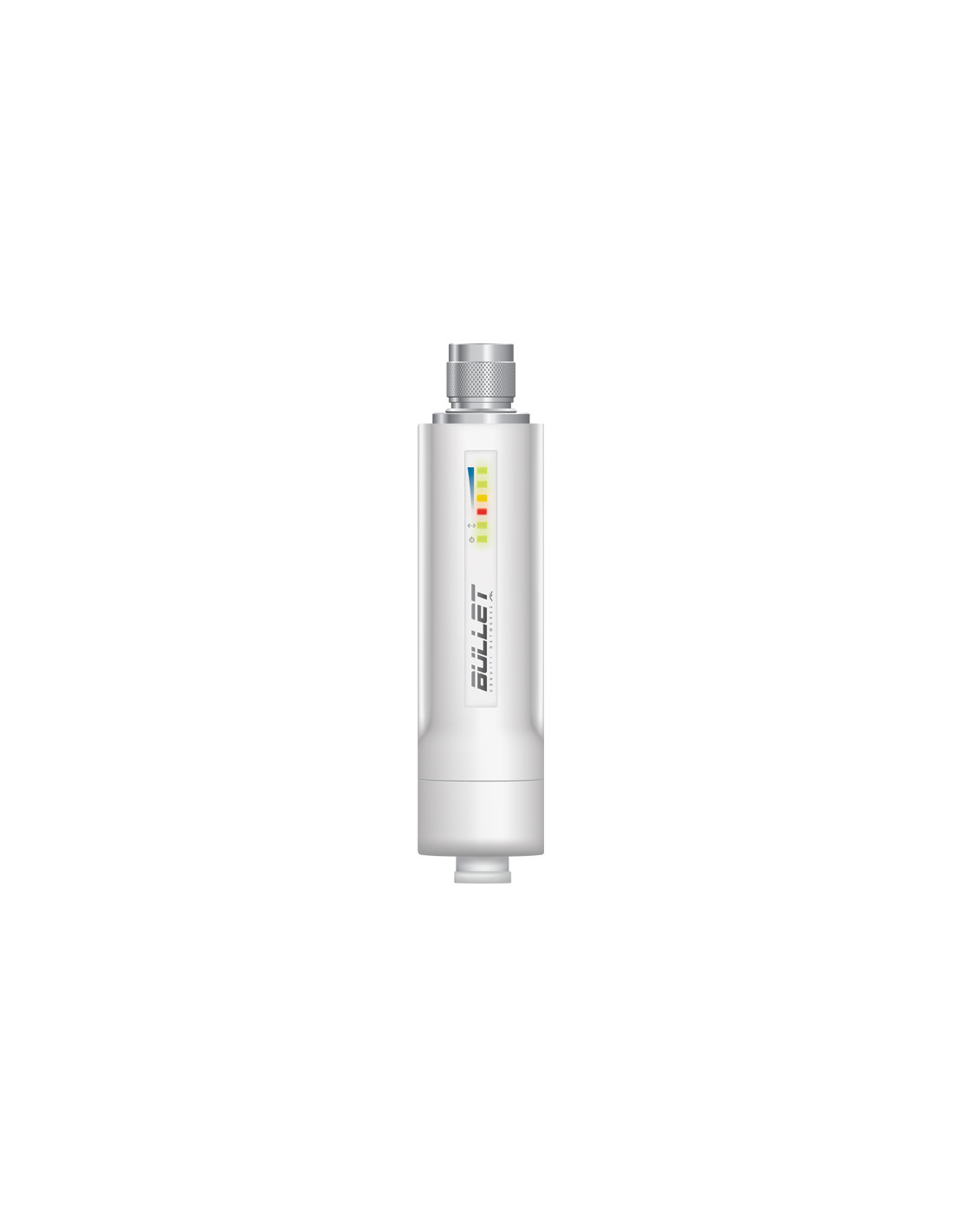

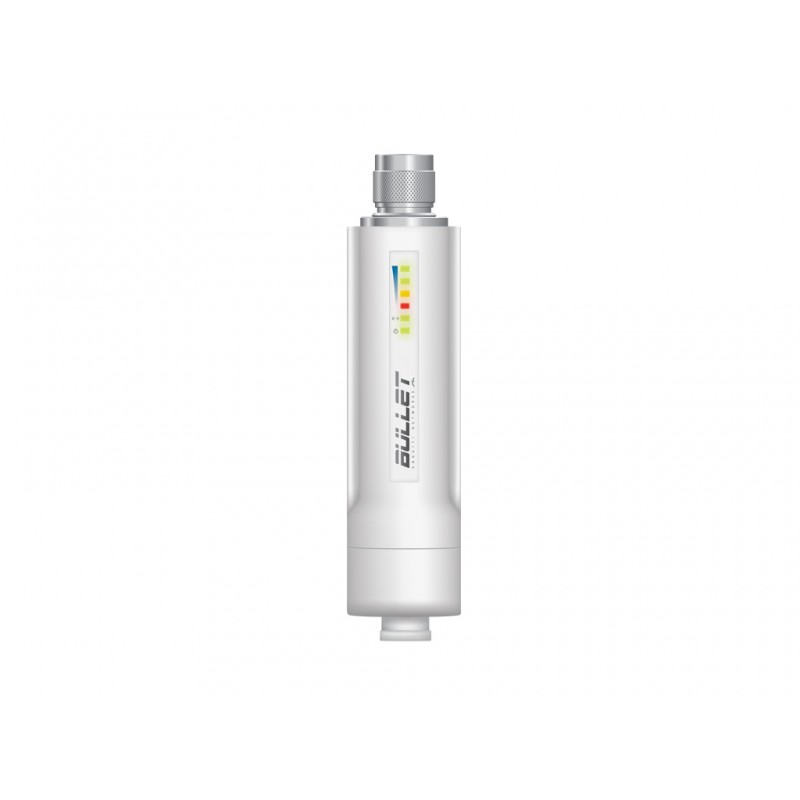

UBIQUITI BULLET AIRMAX M2 HP ACCESS POINT

  • Ultra-compact outdoor amplifier/access point, screwed directly under the antenna
  • Can remain permanently outdoors (operates from -20 to +70°C)
  • Powered by Ethernet cable to router
  • Dimensions 152 x 31 x 37 mm
  • Amplification 28dBi

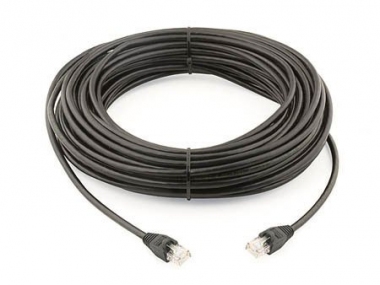

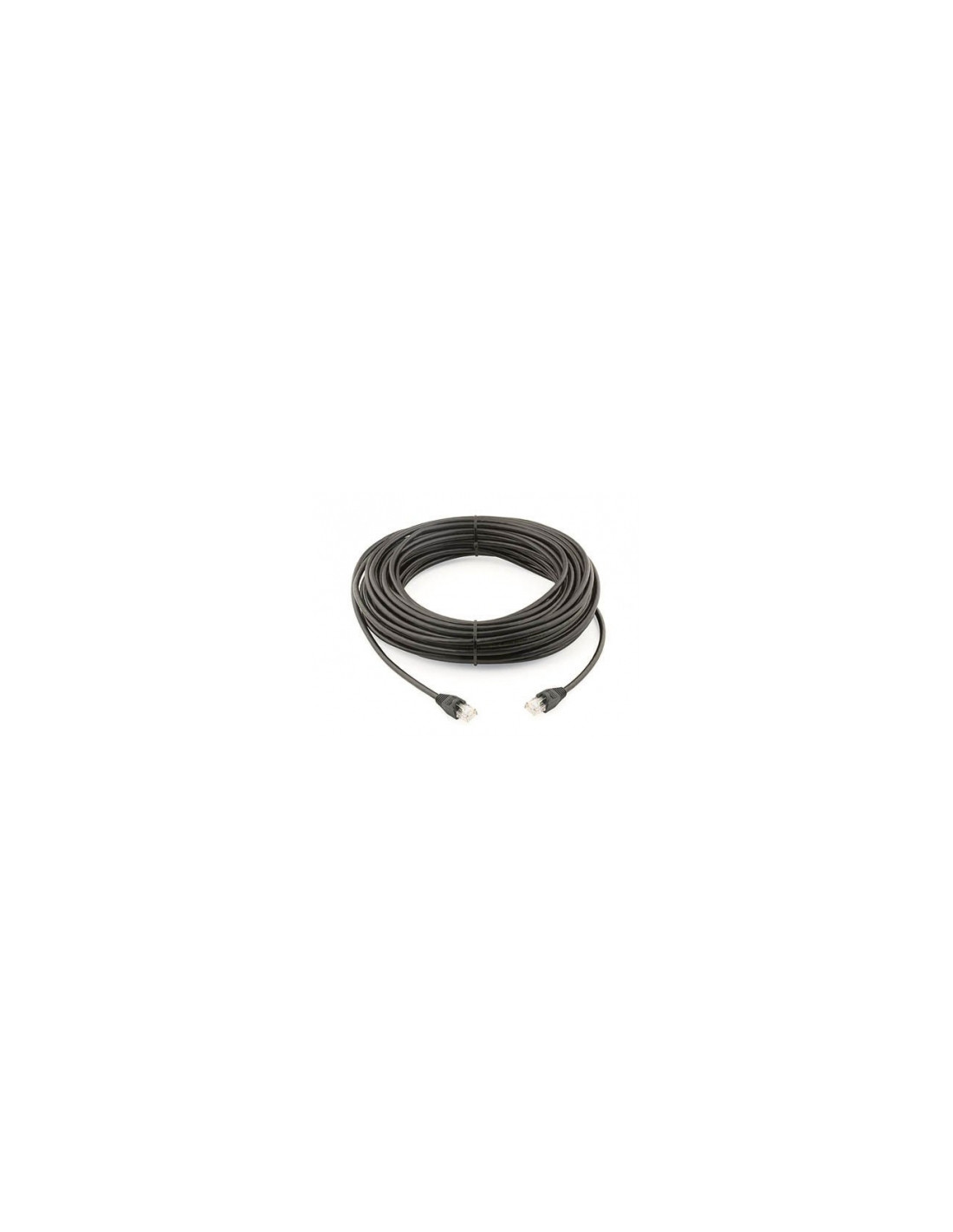

CAT5 ETHERNET CABLE

  • Weatherproof and UV-resistant.
  • No signal loss, unlike coaxial cable
  • Length 5 - 10 - 20m, select when ordering

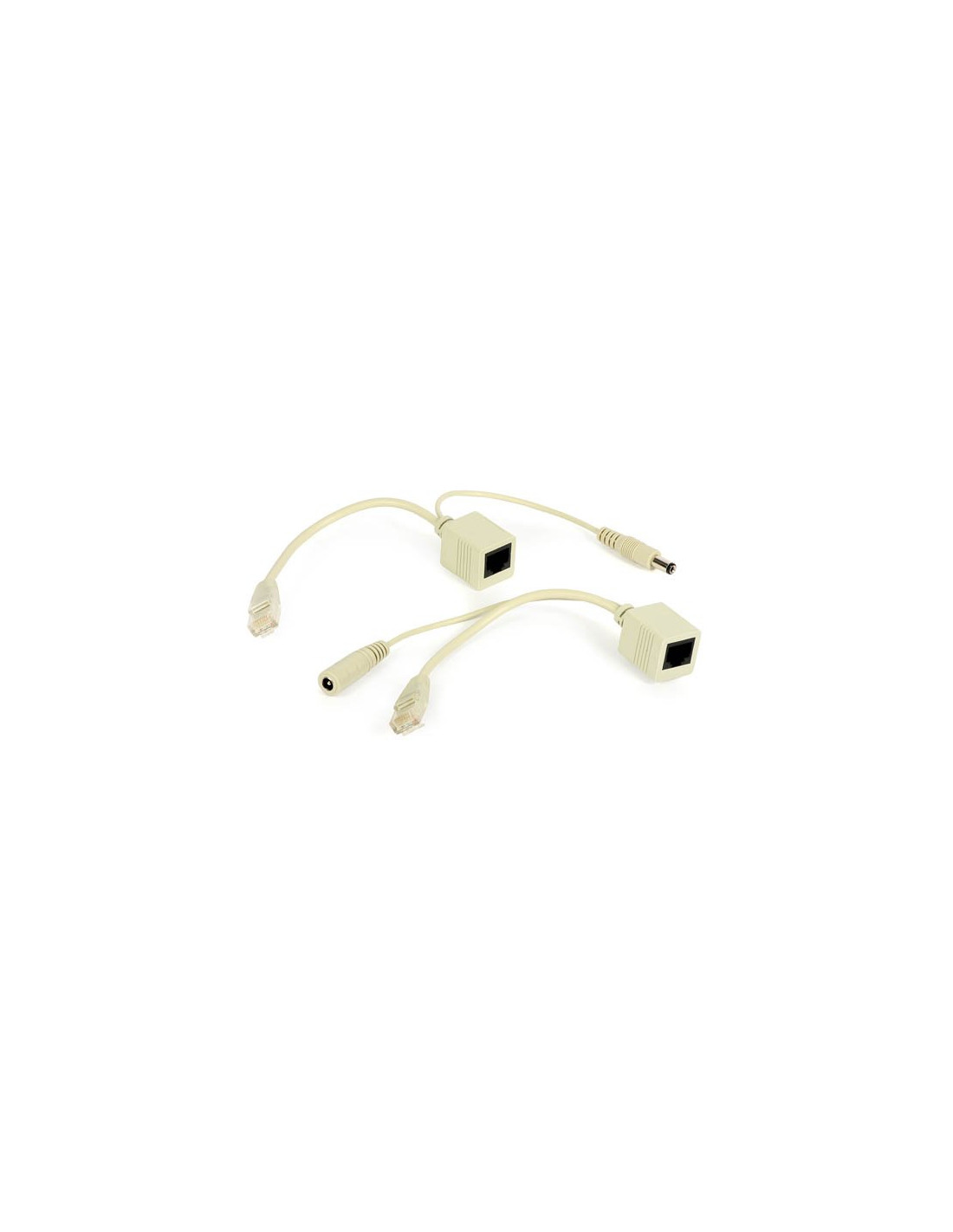

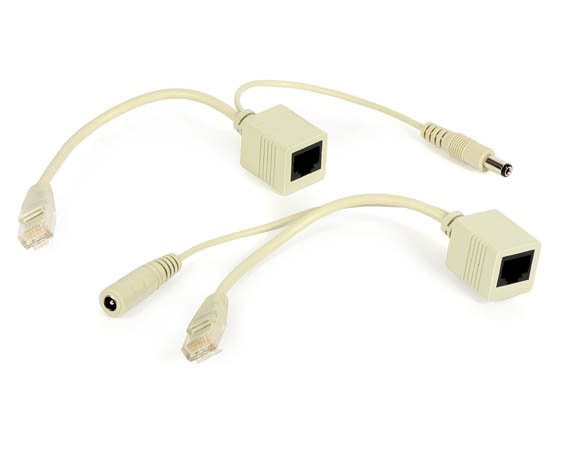

CABLE POE

  • PoE (Power-over-Ethernet) adapter cable
  • Supplies power to the access point via its Ethernet input

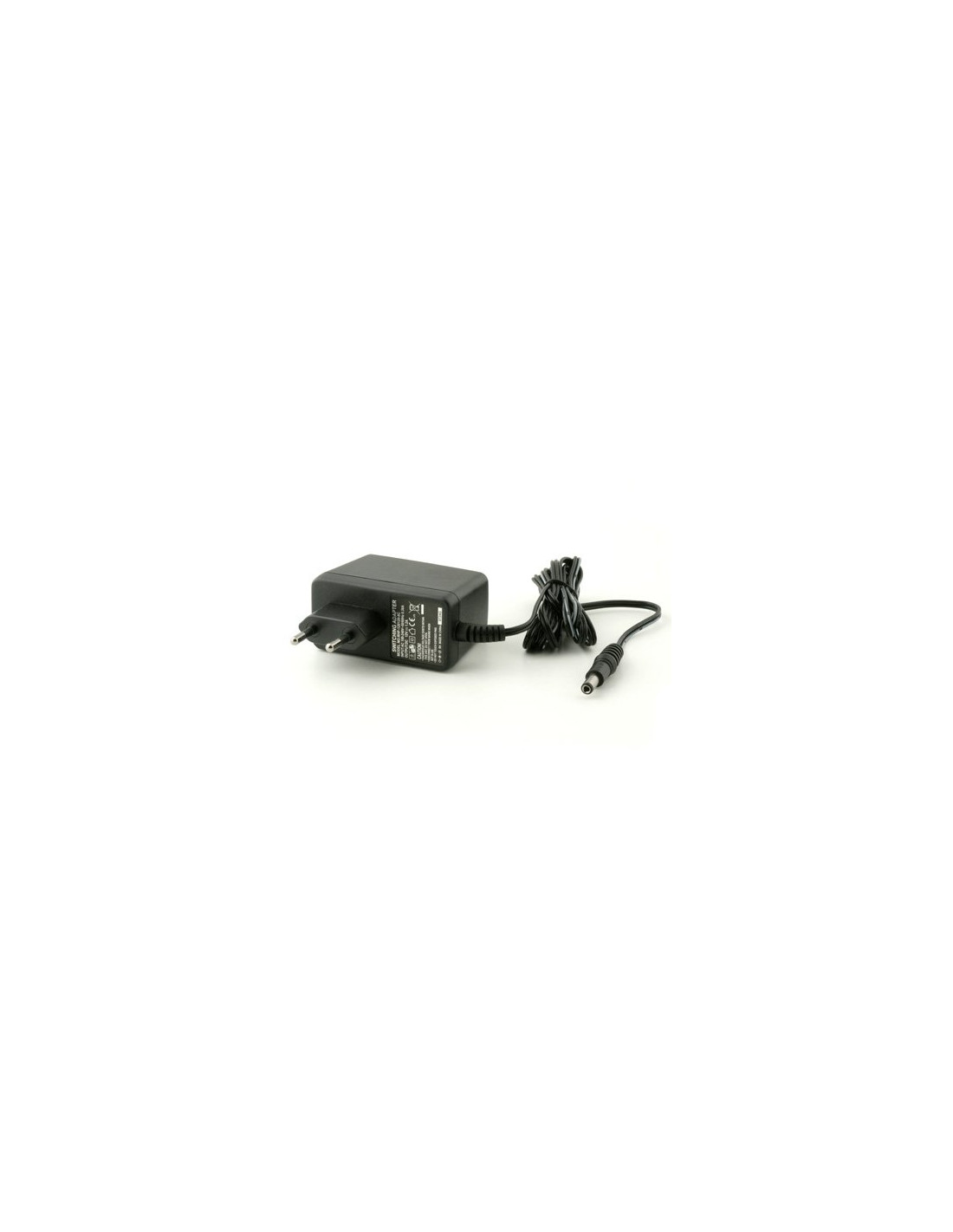

Power supply

The unit can be powered by two different power supplies (included)

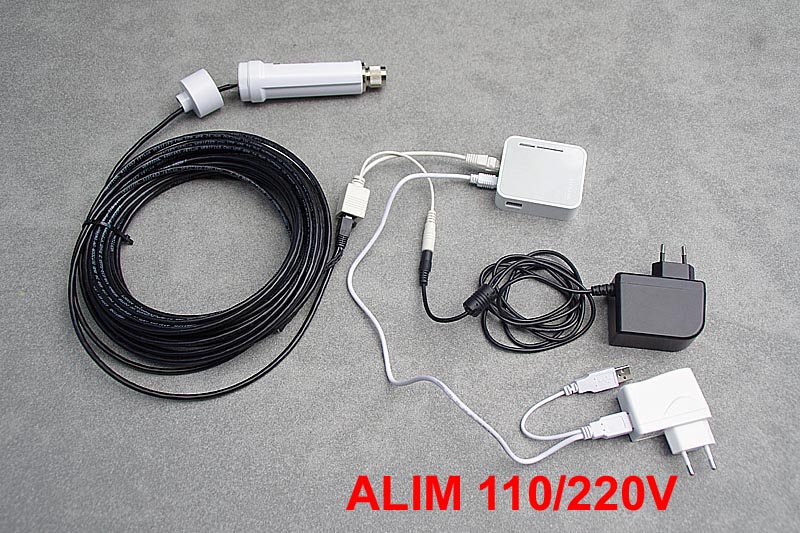

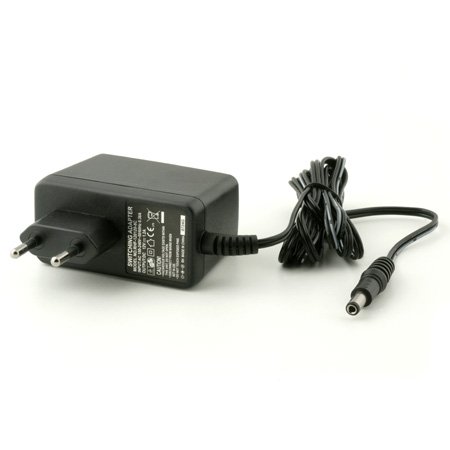

  • mains with 1 x 100/240V - 12V 1.5A power supply for the antenna + 100/220V - 5V power supply for the router (both supplied)

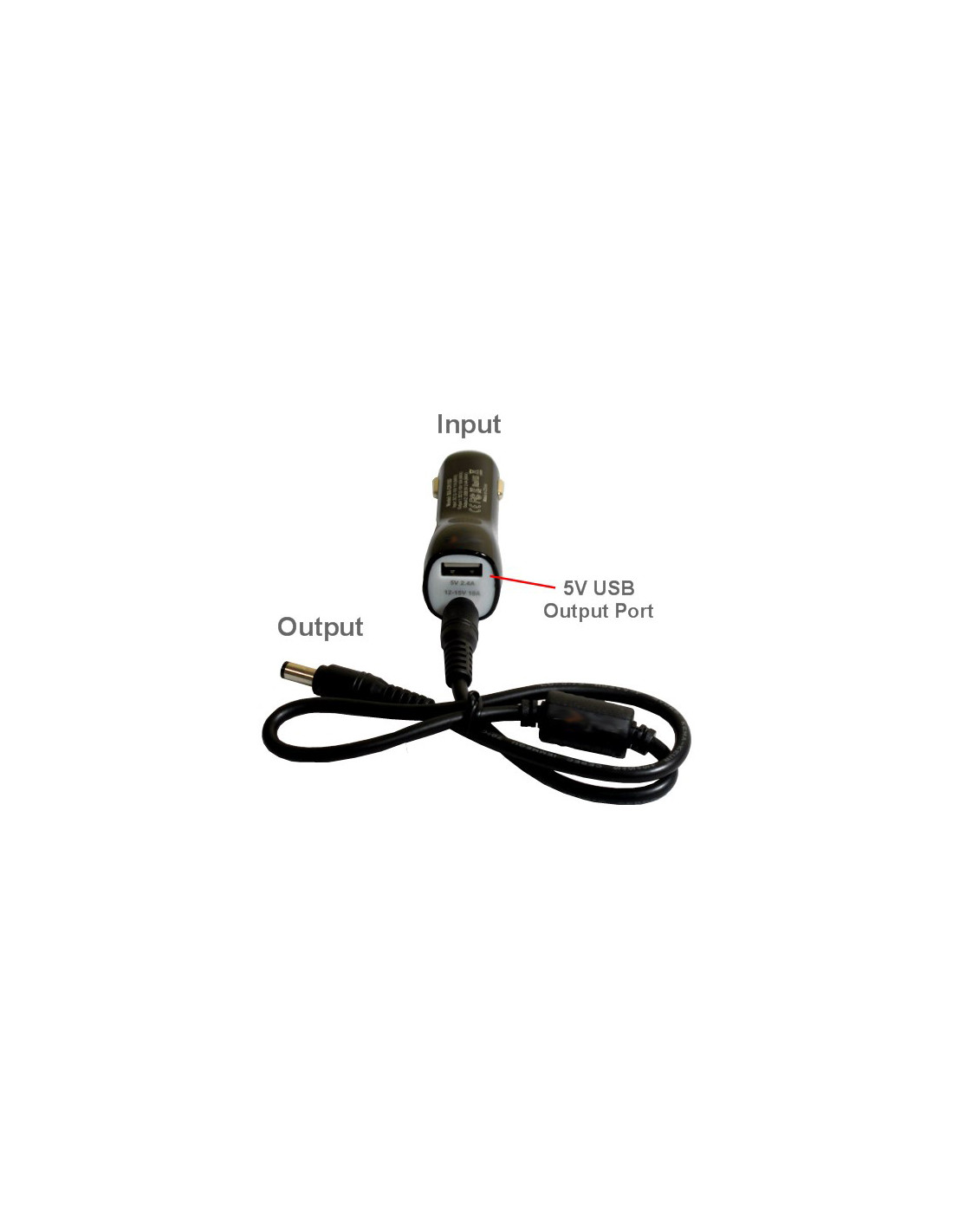

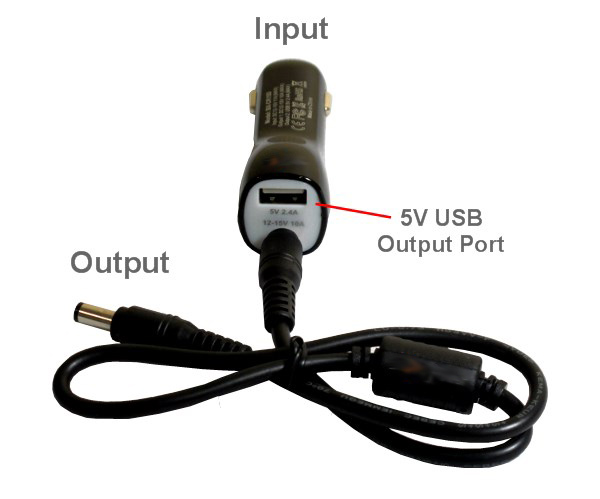

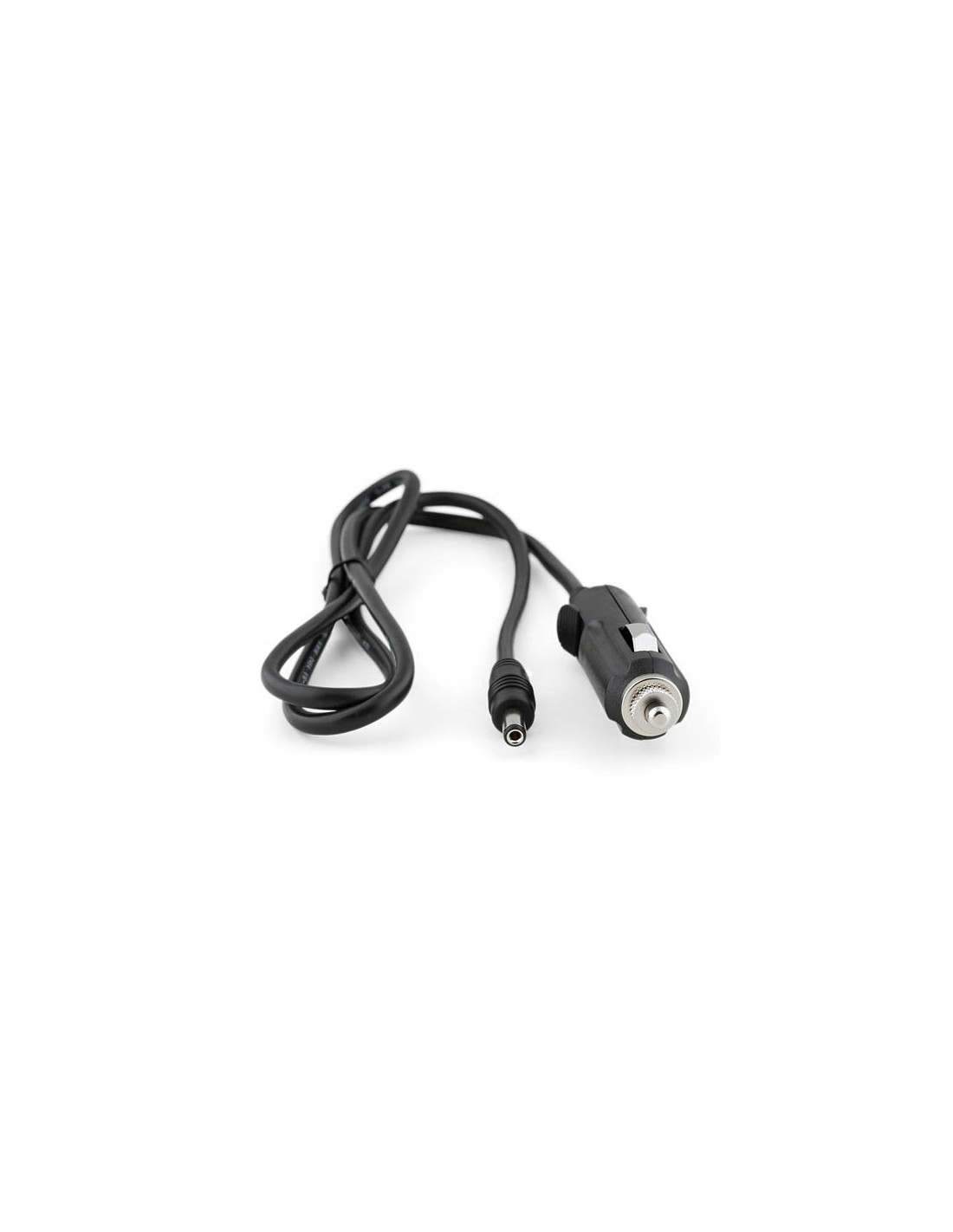

  • on 12V/24V mains with a 12V cigarette-lighter cord (supplied) for the antenna + a USB Type-A smartphone charger (not supplied) for the router.

* With a compatible 3/4G USB key (not supplied)

** Also works on private accesses with known identifiers.
